Application

Pure water industry or power plant

Pure water industry or power plant

In pure water industry or power plant, we suggest that you can choose the following sensors:

pH sensor

· Direct use with various pH meters as a complete set.

· Plug-in connection,convenient to installation and replacement.

· It can be installed with the thread PG13.5.

· pH range:0-14; zero point: E0=7pH; Temperature rang: 0-110.

· Pressure range0.6MPa.

· The external dimension of the sensor isΦ12×120,225or other size.

· The outer tube material:glass.












· Direct use with various pH meters as a complete set.

· The combination sensor with temperature compensation.

· Please note the value of temperature compensation resistance in order.

· Adoption of very convenient spin locking mode and simple installation.

· the sensor has the fixed cable and the length of the cable can be adjusted according to the

  requirements of the user.

· Plug-in connection,convenient to installation and  replacement.

· pH range:0-14;  zero point: E0=7pH; Temperature rang: 0-110.

                                                 · pressure range0.6MPa.

                                                 · The external dimension of the sensor isΦ25×160.

                                                 · The outer tube material: plastic.

                                                 · The thermistor is Pt100Pt10002.252K10K22K and so on.

                                              Selection of model:

                                                  · ASPS1111 three in one combination sensor(please note the value of the thermistor

                                                                 when order)

                                                  · ASPS1151 three in one combination sensor(please note the value of the thermistor

                                                                 when order)

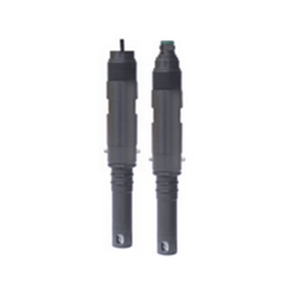

· Direct use with various pH meters as a complete set.

· Installation with 3/4NPT pipe thread, convenient to installation.

· The sensor has the fixed cable and the length of the cable can be adjusted according to the

  requirements of the users.

· pH range:0-14; zero point: E0=7pH; Temperature rang: 0-110.

· pressure range0.6MPa.

· The external dimension of the sensor isΦ26×165.

· The outer tube material:PPS plastic.

                                                    Selection of model:

                                                    · PC2221 two in one combination sensor

                                                    · ASPS2221 three in one combination sensor,please note the value of the thermistor

                                                                         when order:Pt100Pt10002.252K10K22K etc.


ORP sensor

· It can be directly used together with various redox meters as a complete set.

· Installation with 3/4NPT pipe thread,convenient to installation.

· The sensor has the fixed cable.

· The length of the cable can be adjusted according to the requirements of the users.

· Measuring range:±2000mv.

· Temperature rang: -10-110.

· pressure range0.6MPa.

· The external dimension of the sensor:Φ26×165.

                                                  · The outer tube material:PPS plastic.

                                                 Selection of model:

                                                  · ASRS2801 combination ORP sensor (Pt ring)

                                                  · ASRS2501 combination ORP sensor (Pt pin)


Conductivity sensor

· It can be directly used together with various conductivity meters as a compatible set.

· The sensor  has the fixed cable.

· The length of the cable can be adjusted according to the requirements of the user.

· Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.

· Mounting screw cap material: stainless steel.

· Please note the value of the thermistor when order: Pt100, Pt10002.252K10K22K etc.

                                       Pattern selection and technical performance



Model

ASDS-0.01

ASDS-0.1

ASDS1

ASDS-10

Measurement Range ( μs/cm)

0-20

0-200

0-2000

0-20000

Temperature Range ( ℃)

0-130

Pressure ( MPa)

1.0

Constant

0.01

0.1

1

10

Outer Tube Material

stainless steel

External Dimension(mm)

Φ13×70 or other size

Cable Length

Adjusted according to the requirements of the users
