Process Sensor
DO sensor

 Technical feature

·

 Polarographic and galvanic oxygen sensor with stable performance and reliable measurement.

·

Stable zero point and small drift of the sensor.

·

Quick response of sensor (reaching up to 98% measure value<60 seconds).

·

With the measurement range from 2ppb to  20ppm and the compression resistance of 0.4Mpa.

·

With the temperature range :0~80.

·

With the flow rate of 0.02m/s.

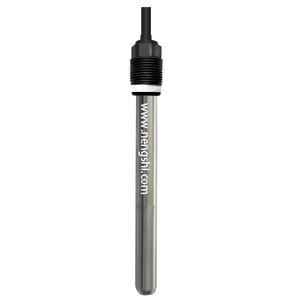

  • Digital DO sensor

    · It can convert analog signals to digital signals ,and it is a predictive digital DO sensor.

    · Data stored in the sensor interface,such as zero point,slope ect.

    · The date can close transmission but also long distance transmission .

    · The measured value is stable and reliable.

    · measuring range: 0ppmsaturation, 0.1%200%.

    · Temperature rang: 0130.

    · pressure range0.4MPa.

    · The external dimension of the sensor isΦ12×120 or other size.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    Selection of model:

    · ASY3851D digital DO sensor with plug-in connection, 316L stainless steel body

    · ASY3811D  digital DO sensor with fixed cable, 316L stainless steel body

    · ASY2121D  digital DO sensor with fixed cable, plastic body

    · ASY2151D  digital DO sensor with plug-in connection, plastic body

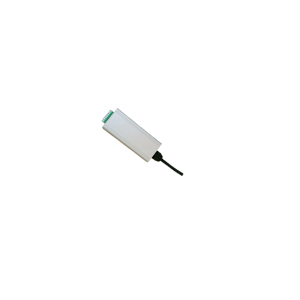

  • DT3000 DO digital module

    · It can directly connect with analog DO sensor .

    · It can convert analog signals to digital signals.



     Selcction of model:

     DT3000 DO digital module with RS485 output

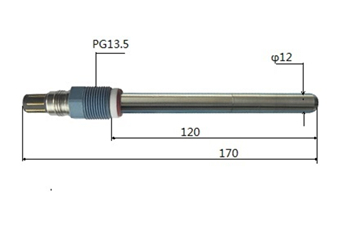

  • Shown as the figure:
    · Plug-in connection; convenient installation and replacement of sensor.
    · It can be installed with the thread PG13.5.

    · Suitable for the industries such as high pure water, biochemical pharmacy, foods and

      beverage, chemical industry, semi-conductor and so on.

    · measuring range: 0ppmsaturation, 0.1%200%

    · Temperature rang: 0130.

    · pressure range0.4MPa.

    · The external dimension of the sensor is Φ12×120 or other size.

    · The outer tube material: 316L stainless steel.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    selection of model:
    · ASY3851(polarographic)
    · ASYY3851(galvanic)

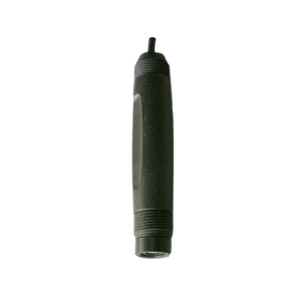

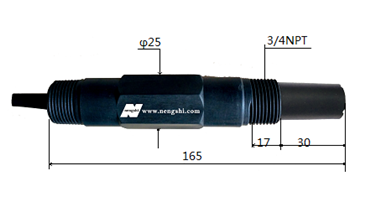

  • Shown as the figure:
    · It can be installed with the thread 3/4NPT.

    · The sensor has the fixed cable and the length of the cable can be adjusted according  to

       the requirements of the user.

    · Suitable for the industries such as water, wastewater treatment, aquaculture and so on.

    · measuring range: 0ppmsaturation, 0.1%200%.

    · Temperature rang: 080.

    · pressure range0.4MPa.

    · The external dimension of the sensor : Φ25×165.

    · The outer tube material : PPS  plastic.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    selection of model:
    · ASY2121(polarographic)
    · ASYY2121(galvanic)

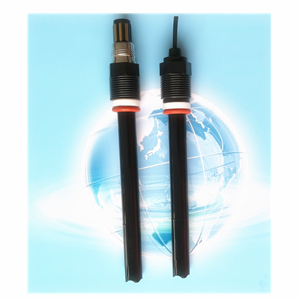

  • Shown as the figure:
    · It can be installed with the thread PG13.5.

    · The sensor has the fixed cable and the length of the cable can be adjusted according to

      the requirements of the user.

    · Suitable for the industries such as high pure water, biochemical pharmacy, foods and

      beverage, chemical industry, semi-conductor and so on.

    · Measuring range: 0ppmsaturation, 0.1%200%

    · Temperature rang: 0130.

    · pressure range0.4MPa.

    · The external dimension of the sensor isΦ12×120 or other size.

    · The outer tube material : 316L stainless steel.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    selection of model:
    · ASY3811(polarographic)
    · ASYY3811(galvanic)
  • Shown as the figure:

    · It is the DO sensor.

    · Stable performance and reliable measurement.

    · Response time: 95% (the 95% measured value  can be reached up in 30 seconds).

    · Messurement  range: 0.00- 20.00mg/l.

    · Temperature range: 0-60.

    · The external dimension of the sensor : Φ12×120.

    · The outer tube material : PPS plastic.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    Selection of model:

    · ASYL2802  polarographic

    · ASYYL2802  galvanic

    · ASYL3802  polarographic  (please note the value of thermistor when order)

    · ASYYL3802 galvanic (please note the value of thermistor when order)

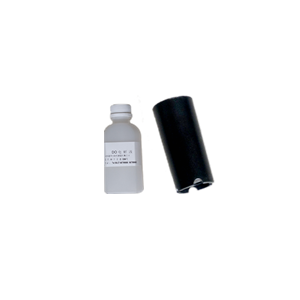

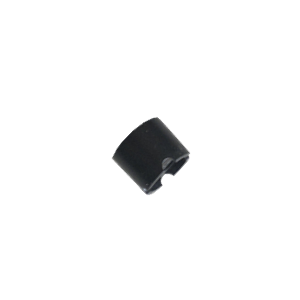

  • Fittings of oxygen sensor diaphragm
    · only for ASY2121 and ASYY2121
    · ordering No.: ASY0802

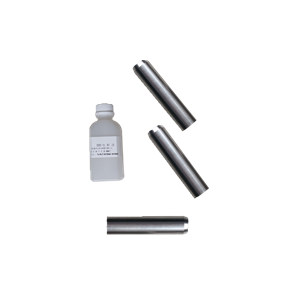

  • Fittings of oxygen sensor diaphragm
    · Including three diaphragms, one bottle of electrolyte and three O- rings
    · ordering No.: ASY0800
