Process Sensor
TDS sensor

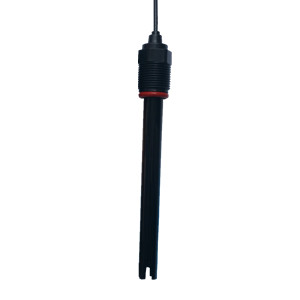

  • Shown as the picture:

    · It is a TDS sensor.

    · Outer tube material: plastic.

    Selection of model:

    · For common occasion:

    Model

    SDLSY-1

    SDLSY-10

    Measurement Range (μs/cm)

    0-2000

    20000

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Constant

    1

    10

    Outer tube material

     plastic

    External Dimensionmm

     Φ12×120

    Cable Length

    Adjusted according to the requirement of user

    · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLSYT-1

    SDLSYT-10

    Measurement Range (μs/cm)

    0-2000

    20000

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Constant

    1

    10

    Outer tube material

     plastic

    External Dimension (mm)

      Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the requirement of user

  • Shown as the picture:

    · It is a TDS sensor .

    · The outer tube material : plastic.

    Selection of model:

    · For common occasion:

    Model

    SDLSSY-1

    SDLSSY-10

    Measurement Range (μs/cm)

    0-20000

    200000

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Constant

    1

    10

    Outer tube material

     plastic

    External Dimensionmm

     Φ12×120

    Cable Length

    Adjusted according to the requirement of user

    · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLSST-1

    SDLSST-10

    Measurement Range (μs/cm)

    0-20000

    200000

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Constant

    1

    10

    Outer tube material

     plastic

    External Dimension (mm)

      Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the requirement of user

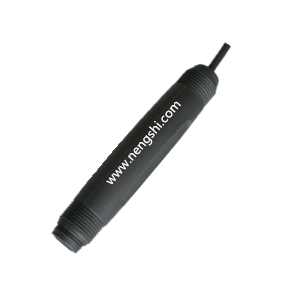

  • Shown as the picture:

    · It can be directly used together with various conductivity meters as a compatible set.

    · The sensor  has the fixed cable.

    · The length of the cable can be adjusted according to the requirements of the user.

    · Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.

    · Please note the value of the thermistor when order: Pt100, Pt10002.252K10K22K etc.

                                         Pattern selection and technical performance

    Model

    ASDSS-1

    ASDSS-10

    Measurement Range ( μs/cm)

    0-20000

    0-200000

    Constant

    1

    10

    Temperature Range ( )

    0-100

    Pressure ( MPa)

    1.0

    The outer tube material

    PPS

    External Dimension(mm)

    Φ26×160

    Cable Length

    Adjusted according to the requirements of the users

    · With temperature compensation ,please note the value of thermistor when order.

    Model

    ASDSST-1

    ASDSST-10

    Measurement Range ( μs/cm)

    0-20000

    0-200000

    Constant

    1

    10

    Temperature Range ( )

    0-100

    Pressure ( MPa)

    1.0

    The outer tube material

    PPS

    External Dimension(mm)

    Φ26×160

    The value of thermistor

    Pt100, Pt1000, 2.252K, 10K, 22K

    Cable Length

    Adjusted according to the requirements of the users
