Process Sensor
Conductivity sensor

Technical feature:

·

Stainless steel and titanium steel conductivity sensor.

·

Measurement range:0~200ms/cm,temperature range:0~100℃.

·

Pressure range:1.0MPa.

·

 Constant K: 0.01,  0.1,  1,  10.

·

Stable performance and long life.

·

Easy to apart and clean.

  • Digital conductivity sensor

    · It can convert analog signals to digital signals ,and it is a predictive digital conductivity sensor.

    · Data stored in the sensor interface,such as zero point,slope etc.

    · The date can close transmission but also long distance transmission .

    · The measured value is stable and reliable.

    Selection of model:

    · ASDS-1D digital conductivity sensor with thermistor and fixed cable

    · ASD-1D digital conductivity sensor with thermistor and plug-in connection

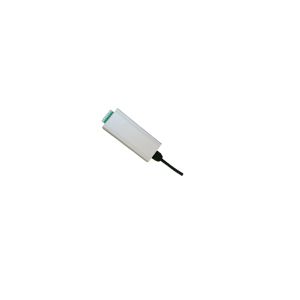

  • CT3000 conductivity digital module

    · It can directly connect with analog conductivity sensor .

    · It can convert analog signals to digital signals.

    · The module output digital signal, which can be connected to the computer directly,and

       display PH value and temperature value.



    Selection of model:

    CT3000 conductivity digital module with RS485 output

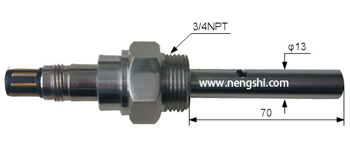

  • Shown as the figure:

    · It can be directly used together with various conductivity meters as a complete set.

    · Plug-in connection.

    · Installation thread: 3/4 pipe thread, 1/2pipe thread or other thread.

    · Please note the value of the thermistor when order: Pt100, Pt10002.252K10K22K etc.

                                           Pattern selection and technical performance

    Model

    ASD-0.01

    ASD-0.1

    ASD-1

    ASD-10

    Measurement Range (μs/cm)

    0-20

    0-200

    0-2000

    0-20000

    Constant

    0.01

    0.1

    1

    10

    Temperature Range ( )

    0-130

    Pressure ( MPa)

    1.0

    Outer Tube Material

    stainless steel

    External Dimension(mm)

    Φ13×70 or other size

    Cable Length

    Adjusted according to the requirements of the users

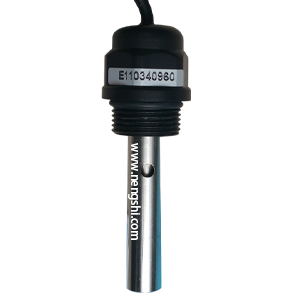

  • Shown as the figure:

    ·  It can be directly used together with various conductivity meters as a compatible set.

    ·  The electrode has the fixed cable.

    · The length of the cable can be adjusted according to the requirements of the user.

    · Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.

    · Please note the value of the thermistor when order: Pt100, Pt10002.252K 10K22K etc.

                                        Pattern selection and technical performance

    Model

    ASDH-0.01

    ASDH-0.1

    ASDH-1

    ASDH-10

    Measurement Range ( μs/cm)

    0-20

    0-200

    0-2000

    0-20000

    Constant

    0.01

    0.1

    1

    10

    Temperature Range ( )

    0-130

    Pressure ( MPa)

    1.0

    The outer tube material

    stainless steel

    External Dimension(mm)

    Φ13×70 or other size

    Cable Length

    Adjusted according to the requirements of the users

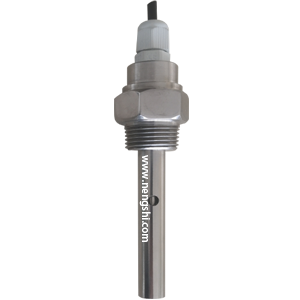

  • Shown as the figure:

    · It can be directly used together with various conductivity meters as a compatible set.

    · The sensor  has the fixed cable.

    · The length of the cable can be adjusted according to the requirements of the user.

    · Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.

    ·  Mounting screw cap material: stainless steel.

    ·  Please note the value of the thermistor when order: Pt100, Pt10002.252K10K22K etc.

                                          Pattern selection and technical performance

    Model

    ASDS-0.01

    ASDS-0.1

    ASDS1

    ASDS-10

    Measurement Range ( μs/cm)

    0-20

    0-200

    0-2000

    0-20000

    Constant

    0.01

    0.1

    1

    10

    Temperature Range ( )

    0-130

    Pressure ( MPa)

    1.0

    The outer tube material

    stainless steel

    External Dimension(mm)

    Φ13×70 or other size

    Cable Length

    Adjusted according to the requirements of the users

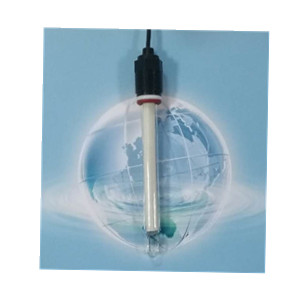

  • Shown as the figure:

    · It is the conductivity sensor.

    · Measurement  cell : Pt(platinum).

    · The outer tube material : glass.

    Selection of model:

    Model

    SDL-0.1

    SDL-1

    SDL-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Constant

    0.1

    10

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    The outer tube material

     Glass or plastic

    External Dimension

    Φ12×120

    Cable Length

    Adjusted according to the requirement of user

    · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLT-0.1

    SDLT-1

    SDLT-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Constant

    0.1

    1

    10

    Temperature Range ()

    0-80

    Pressure ( MPa)

    1.0

    The outer tube material

     Glass or plastic

    External Dimension

     Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the requirement of user

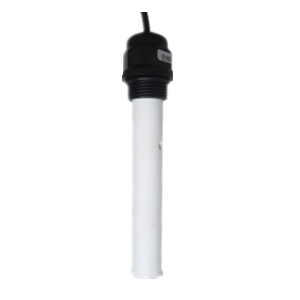

  • Shown as the figure:

    · It is the conductivity sensor .

    · Measurement  cell : Titanium(Ti)  stainess steel.

    · The outer tube material: plastic.

    Selection of model:

    · For common occasion:

    Model

    SDLS-0.1

    SDLS-1

    SDLS-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Constant

    0.1

    10

    Temperature Range ()

    0-80

    Pressure(MPa)

    1.0

    The outer tube material

     plastic

    External Dimension

    Φ12×120

    Cable Length

    Adjusted according to the requirement of user

    · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLST-0.1

    SDLST-1

    SDLST-10

    Measurement Rang(μs/cm)

    0-200

    0-2000

    0-20000

    Constant

    0.1

    10

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    The outer tube material

     plastic

    External Dimension

    Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the requirement of user

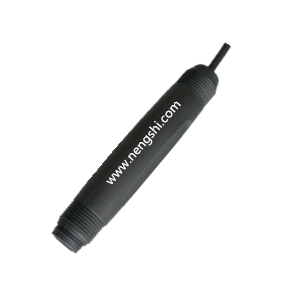

  • Shown as the figure:

    · It is an online industrial conductivity sensor.

    · Measurement  cell : graphite.

    · The outer tube material : plastic.

    Selection of model:

    · For common occasion:

    Model

    SDLSS-1

    SDLSS-10

    Measurement Range (μs/cm)

    0-20000

    200000

    Constant

    1

    10

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Outer tube material

     plastic

    External Dimensionmm

     Φ12×120

    Cable Length

    Adjusted according to the requirement of user

     · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLSST-1

    SDLSST-10

    Measurement Range (μs/cm)

    0-20000

    200000

    Constant

    1

    10

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Outer tube material

     plastic

  • Show as the picture

    · It can be directly used together with various conductivity meters as a compatible set.

    · The sensor  has the fixed cable.

    · The length of the cable can be adjusted according to the requirements of the user.

    · Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.

    · Mounting screw cap material: stainless steel.

    · Please note the value of the thermistor when order: Pt100, Pt10002.252K10K22K etc.

                                         Pattern selection and technical performance

    Model

    ASDSS-1

    ASDSS-10

    Measurement Range ( μs/cm)

    0-20000

    0-200000

    Constant

    1

    10

    Temperature Range ( )

    0-100

    Pressure ( MPa)

    1.0

    The outer tube material

    PPS

    External Dimension(mm)

    Φ26×160

    Cable Length

    Adjusted according to the requirements of the users
