Lab Sensor
Conductivity sensor

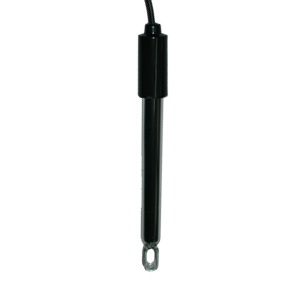

  • Shown as the figure:
    · It is the conductivity sensor for lab.
    · Measurement  cell : Titanium(Ti)  stainess steel.
    · Outer tube material: plastic.
    Selection of model:

    · For common occasion:

    Model

    SDLS-0.1

    SDLS-1

    SDLS-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Temperature Range ()

    0-80

    Pressure(MPa)

    1.0

    Constant

    0.1

    10

    Outer tube material

     plastic

    External Dimension

    Φ12×120

    Cable Length

    Adjusted according to the requirement of user

    · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLST-0.1

    SDLST-1

    SDLST-10

    Measurement Rang(μs/cm)

    0-200

    0-2000

    0-20000

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Constant

    0.1

    10

    Outer tube material

     plastic

    External Dimension

    Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the requirement of user

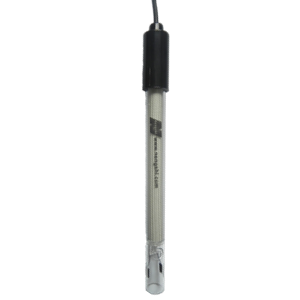

  • Shown as the figure:
    · It is the conductivity sensor for lab.
    · Measurement cell:Titannium,Stainless steel.
    · Measurement  cell : graphite.
    · The outer tube material : plastic.

    Selection of model:

    · For common occasion:

    Model

    SDLSS-1

    Measurement Range (μs/cm)

    0-2000

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Constant

    1

    Outer tube material

     plastic

    External Dimension

     Φ12×120

    Cable Length

    Adjusted according to the reqirement of user

     · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLSST-1

    Measurement Range (μs/cm)

    0-2000

    Temperature Range (℃)

    0-80

    Pressure (MPa)

    1.0

    Constant

    1

    Outer tube material

     plastic

    External Dimension

      Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the reqirement of user

  • Shown as the figure:
    · It is the conductivity sensor for lab.
    · Measurement  cell : Pt(platinum).
    · The outer tube material : glass.

    Selection of model:

    · For common occasion:

    Model

    SDL-0.1

    SDL-1

    SDL-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Temperature Range ()

    0-80

    Pressure MP(MPa)

    1.0

    Constant

    0.1

    10

    Outer tube material

     Glass

    External Dimension

     Φ12×120

    Cable Length

    Adjusted according to the reqirement of user

    · With temperature compensation,Please note the value of thermistor when order.

    Model

    SDLT-0.1

    SDLT-1

    SDLT-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Temperature Range (℃)

    0-80

    Pressure MP ( MPa)

    1.0

    Constant

    0.1

    1

    10

    Outer tube material

      Glass

    External Dimension

     Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the reqirement of user

  • Shown as the figure:
    · It is the conductivity sensor for lab.
    · Measurement  cell : Pt(platinum).
    · The outer tube material : glass.

    Selection of model:

    · For common occasion:

    Model

    SDLC-0.1

    SDLC-1

    SDLC-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Temperature Range ()

    0-80

    Pressure (MPa)

    1.0

    Constant

    0.1

    10

    Outer tube material

     Glass

    External Dimension

    Φ12×120

    Cable Length

    Adjusted according to the requirement of user

    · With temperature compensation ,please note the value of thermistor when order.

    Model

    SDLCT-0.1

    SDLCT-1

    SDLCT-10

    Measurement Range(μs/cm)

    0-200

    0-2000

    0-20000

    Temperature Range ()

    0-80

    Pressure ( MPa)

    1.0

    Constant

    0.1

    1

    10

    Outer tube material

     Glass

    External Dimension

     Φ12×120

    The value of thermistor

    Pt100, Pt1000,2.252K,10K,22K

    Cable Length

    Adjusted according to the requirement of user
