Selection of model:
Model |
SDLY-1 |
SDLY-10 |
Measurement Range (mg/L) |
0-1000 |
0-10000 |
Temperature Range (℃) |
0-80 |
|
Pressure (MPa) |
1.0 |
|
Constant |
1 |
10 |
Outer tube material |
plastic |
|
External Dimension（mm） |
Φ12×120 |
|
Cable Length |
Adjusted according to the requirement of user |
|
· With temperature compensation ,please note the value of thermistor when order.
Model |
SDLTY-1 |
SDLTY-10 |
Measurement Range (mg/L) |
0-1000 |
0-10000 |
Temperature Range (℃) |
0-80 |
|
Pressure (MPa) |
1.0 |
|
Constant |
1 |
10 |
Outer tube material |
plastic |
|
External Dimension (mm) |
Φ12×120 |
|
The value of thermistor |
Pt100, Pt1000,2.252K,10K,22K |
|
Cable Length |
Adjusted according to the requirement of user |
|

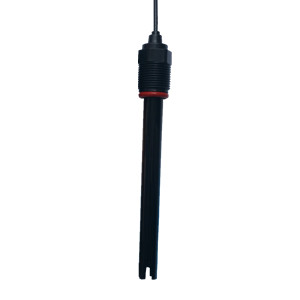

· It is a salinity sensor.
· Measurement cell : graphite.
· The outer tube material : plastic.
Selection of model:
Model |
SDLSSY-1 |
SDLSSY-10 |
Measurement Range (g/L) |
0-10 |
0-100 |
Temperature Range (℃) |
0-80 |
|
Pressure (MPa) |
1.0 |
|
Constant |
1 |
10 |
Outer tube material |
plastic |
|
External Dimension（mm） |
Φ12×120 |
|
Cable Length |
Adjusted according to the requirement of user |
|
· With temperature compensation ,please note the value of thermistor when order.
Model |
SDLSSTY-1 |
SDLSSTY-10 |
Measurement Range (g/L) |
0-10 |
0-100 |
Temperature Range (℃) |
0-80 |
|
Pressure (MPa) |
1.0 |
|
Constant |
1 |
10 |
Outer tube material |
plastic |
|
External Dimension (mm) |
Φ12×120 |
|
The value of thermistor |
Pt100, Pt1000,2.252K,10K,22K |
|
Cable Length |
Adjusted according to the requirement of user |
|
· It can be directly used together with various conductivity meters as a compatible set.
· The sensor has the fixed cable.
· The length of the cable can be adjusted according to the requirements of the user.
· Installation thread: 3/4 pipe thread, 1/2 pipe thread or other thread.
· Please note the value of the thermistor when order: Pt100, Pt1000，2.252K，10K，22K etc.

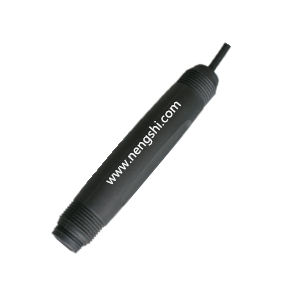

Pattern selection and technical performance
Model |
ASDSSY8077-1 |
ASDSSY8077-10 |
Measurement Range ( g/L) |
0-10 |
0-100 |
Constant |
1 |
10 |
Temperature Range ( ℃) |
0-100 |
|
Pressure ( MPa) |
1.0 |
|
The outer tube material |
PPS |
|
External Dimension(mm) |
Φ26×160 |
|
Cable Length |
Adjusted according to the requirements of the users |
|
· With temperature compensation ,please note the value of thermistor when order.
Model |
ASDSSTY8077-1 |
ASDSSTY8077-10 |
Measurement Range (g/L) |
0-10 |
0-100 |
Constant |
1 |
10 |
Temperature Range ( ℃) |
0-100 |
|
Pressure ( MPa) |
1.0 |
|
The outer tube material |
PPS |
|
External Dimension(mm) |
Φ26×160 |
|
The value of thermistor |
Pt100, Pt1000, 2.252K, 10K, 22K |
|
Cable Length |
Adjusted according to the requirements of the users |
|
