Digital Sensor

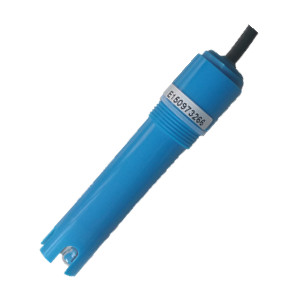

Digital multiple parameter sensor
  • Digital multiple parameter sensor

    · It can output directly digital signal, and aslo can convert to WIFI or GPRS signal.

    · It is combintion sensor with pH,ORP, temperature and conductivity.

    · Unique structure prevents the sensor from easy pollution and blockage,Long life.

    · It is unnecessary to refill electrolyte, convenient use.

    · pH range : 0~14pH; Pressure  range : 0.6Mpa.

    · Temperature range : 0~80℃.

    · ORP range : -1500mv ~ +1500mv.

    · Conductivity range : 0 ~ 20000us/cm.

    · The external dimension of the sensor is φ20x120mm.

    · The outer tube material : PPS plastic.

    Selection of model:

    · PT2121D digital pH sensor

    · RT2121D digital ORP sensor

    · PRT2121D  pH,ORP, temperature three in one digital sensor

    · PRCT2121D  pH,ORP, conductivity,temperature four in one digital sensor

  • Digital multiple parameter sensor

    · It can output directly digital signal, and aslo can convert to WIFI or GPRS signal.

    · It is combintion sensor with pH,ORP, temperature and conductivity.

    · Unique structure prevents the sensor from easy pollution and blockage,Long life.

    · It is unnecessary to refill electrolyte, convenient use.

    · pH range : 0~14pH; Pressure  range : 0.6Mpa.

    · Temperature range : 0~80℃.

    · ORP range : -1500mv ~ +1500mv.

    · Conductivity range : 0 ~ 20000us/cm.

    · The external dimension of the sensor is φ25x165mm.

    · The thread is 3/4NPT.

    · The outer tube material : PPS plastic.

    Selection of model:

    · ASPT2121D digital pH sensor

    · ASRT2121D digital ORP sensor

    · ASPRT2121D  pH,ORP, temperature three in one digital sensor

    · ASPRCT2121D  pH,ORP, conductivity,temperature four in one digital sensor

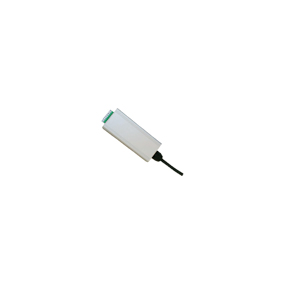

  • Digital multiple parameter module

    · It can directly connect with analog pH sensor .

    · It can convert analog signals to digital signals.



    Selcction of model:

    · PRT3000 pH, ORP, temperature three in one digital module with RS485 output

    · PRCT3000 pH, ORP, conductivity, temperature four in one digital module with RS485

                         output
