Analyzer
Conductivity transmitter

Technical feature

our company produces a variety of  conductivity transmitter/controller with microcomputer processor. All of them are simple to operation, superior performance, powerful functions, stable and reliable quality.

  • CON3000E transmitter

    CON3000E possesses good suitability, clear display, convenient operation and excellent measurement performance,which makes it posseses high cost performance. CON3000E can measure conductivity value and temperature of solution accurately.  It can be widely applied in continuous monitor of conductivity value in  chemical industry chemical fertilizer industrymetallurgical industryenvironment protection industrytap water industry  etc.

     Technical index:

    Conductivity Constant

    K=0.01, 0.1 ,1, 10

    The basic error of electronic unit

    Conductivity:±0.5%FS; Temperature:±0.3

    The basic error of apparatus

    Conductivity:±1%FS; Temperature:±0.5(0 60)

    Electronic unit stability

    ±1%FS±1word/24h

    Working conditions

    ambient temperature060

    Current isolated output

    420mA(load 750Ω)

    Output current error

    ≤±0.5%FS

    Hight /low alarm relay

    AC220V,3A

    Power supply

    AC220V±22V,5060HZ

    RS485 communication

    optional

    Degree of protection

    IP40

    Relative humidity

    85%

    External dimension

    96(length)×96(width)×90(depth)mm

    weight

    0.5kilogram

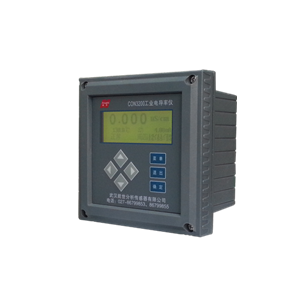

  • CON3200 transmitter

    CON3200 possesses good suitability, clear display, convenient operation and excellent measurement performance,which makes it possess high cost performance. CON3200 can measure conductivity value and temperature of solution accurately. In addition, it widely applies to the continuous monitor the conductivity values of power plantPetroleum chemical industry , chemical fertilizer industry,metallurgical industry environmental protection industry pharmaceutical industry fermentation industry, chemical and biological industryfood industry and tap water industry etc.

    Technical index:

    Measuring range

    020000μS/cm

    Conductivity constant

    K=0.01,0.1,1,10

    The basic error of electronic unit

    Conductivity:±0.5%FS; Temperature:±0.3℃(060℃)

    The basic error of apparatus

    Conductivity:±1%FS; Temperature:±0.5(060)

    The water sample

    099.9; 0.6MPa

    Electronic unit stability

    ±1%FS±1/24h

    Working conditions

    ambient temperature0-60

    Current isolated output

    420mA(load 750Ω)

    Output current error

    ≤±0.5%FS

    Hight /low alarm relay

    AC220V,3A

    Power supply

    AC220V±22V,5060HZ

    Clock precision

    ±1 min/month

    RS485 communication

    optional

    Degree of protection

    IP65

    Relative humidity

    85%

    External dimension

    146(length)×146(width)×108(depth)mm

    Weight

    0.8kilogram

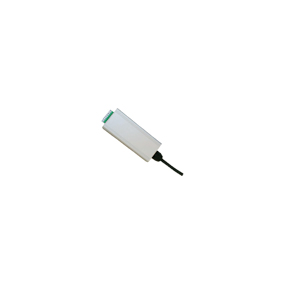

  • CT3000 conductivity digital module

    · It can directly connect with analog conductivity sensor.

    · It can convert analog signals to digital signals.

    · It has RS485 output.
