Process Sensor
Ion sensor

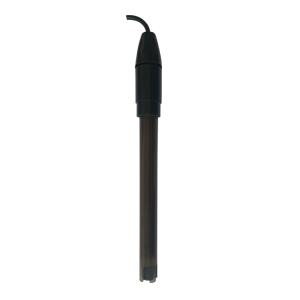

  • Shown as the figure:

    · It is combination ion  sensor and plastic body.

    · They are suitable for a wide variety application.

              Pattern selection and technical performance

    Species

    Model

    Membrane

    Measurement range

    (mol/L)

    pH

    range

    Temp range

    ()

    Size

    (mm)

    Calcium Ion Sensor

    ASICA2200

    PVC

    10-1~10-5

    4-10

    5-60

    φ12x120

    Copper Ion Sensor

    ASICU2200

    Solid

    10-1~10-7

    3-5

    Nitrate Ion Sensor

    ASINO3200

    PVC

    10-1~10-5

    4-9

    Chloride Ion Sensor

    ASICL1200

    Solid

    10-1~5X10-5

    2-10

    Ammonia Ion Sensor

    ASINH4200

    Glass

    10-1~5X10-6

    4-10

    Fluoride Ion Sensor

    ASIF1200

    Solid

    10-1~10-5

    5-7

    Cyanide Ion Sensor

    ASICN1200

    Solid

    10-2~5X10-6

    2-12

    Iodine Ion Sensor

    ASI1200

    Solid

    10-1~10-7

    2-12

    Bromine Ion Sensor

    ASBR1200

    Solid

    10-1~10-7

    1-7

    Lead Ion Sensor

    ASPB2200

    Solid

    10-1~10-7

    3-6

    Ammonia gas Sensor

    ASINH3200

    Gas

    1×10-6

    11

    Cadmium ion sensor

    ASICD2200

    Solid

    1×10-7

    2-8

    Potassium ion sensor

    ASIK1200

    PVC

    1×10-6

    2-12

    Silver ion sensor

    ASIAG1200

    Solid

    10-7-1M

    2-12

    Sulphur ion sensor

    ASIS2200

    Solid

    10-7-1M

    2-12

    Sodium ion sensor

    ASNA703

    Glass

    4×10-6-1M

    10

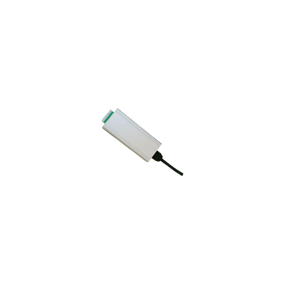

  • IONT3000 Ion digital module

    · It can directly connect with analog ion sensor.

    · It can convert analog signals to digital signals .

    · The module output digital signal, which can be connected to the computer directly, and

       display ion value and temperature value.



     Selection of model:

     IONT3000  Ion digital module with RS485 output
