Process Sensor

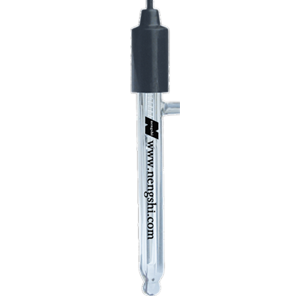

pH sensor for pure water

Technical feature:

·

Adoption of the most advanced large Teflon diaphragm ,which make the sensor with stable liquid junction.

·

Adoption of sensitive glass membrane with low impedance effectively eliminate various interferences so as to make the



sensor response sensitively.

·

The reference system is filled with the high polymer,convenient to use, it is unnecessary to refilling KCL solution and it



can avoid the pollution on the tested liquid by KCL additive liquid.

·

The sensor is suitable for the pure water with the conductivity 1μs/cm.

·

The pH range:0~14pH, temperature range: 0~80, pressure resistance of 0.6Mpa and zero point E07pH.

·

Pressure resistance: 0.6MPa and the zero point E0=7pH.

·

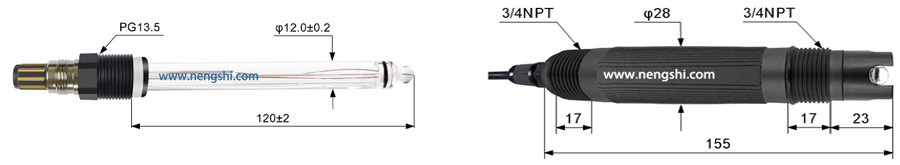

The external dimension of the sensor is φ12x120 ,225,360,450 or other dimensions.

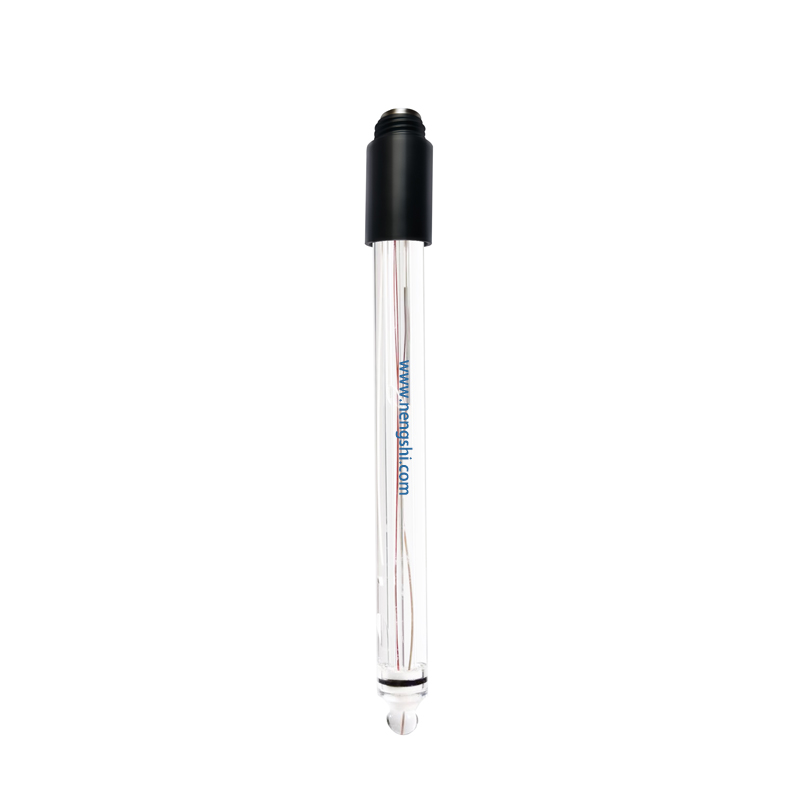

  • Model: ASP2221 combination sensor
    · Direct use with various pH meters as a complete set.
    · Plug-in connection,convenient to installation and replacement.

    · It can be installed with the thread PG13.5.

    · pH range:0-14; zero point: E0=7pH; Temperature rang: 0-110℃.

    · Pressure range0.6MPa.

    · The external dimension of the sensor isΦ12×120,225or other size.

    · The outer tube material:glass.

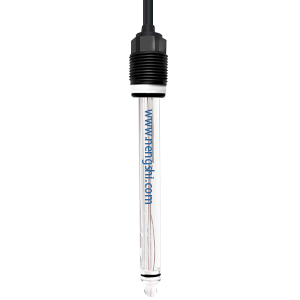

  • Model: ASP2211 combination sensor
    · Direct use with various pH meters as a complete set.

    · The sensor has the fixed cable and the length of the cable can be adjusted

      according to the requirements of the users.

    · It can be installed with the thread PG13.5.

    · pH range:0-14; zero point: E0=7pH; Temperature rang: 0-110℃.

    ·  pressure range0.6MPa.

    · The external dimension of the sensor isΦ12×120,225or other size.

    · The outer tube material:glass.

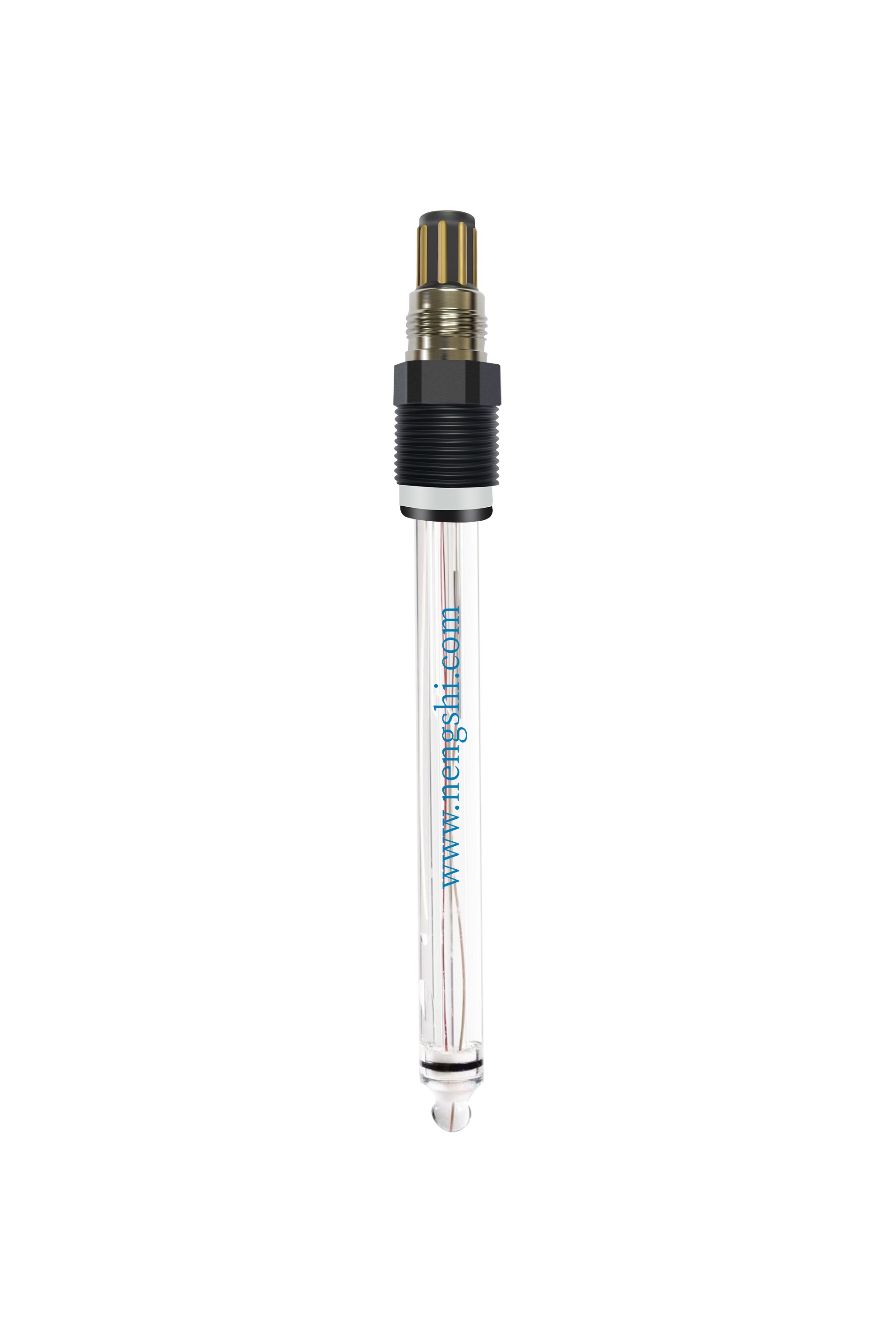

  • Model: ASP2281 combination sensor
    · Direct use with various pH meters as a complete set.

    · Plug-in connection,convenient to installation and replacement .

    · pH range:0-14; zero point: E0=7pH; Temperature rang: 0-110℃.

    · pressure range0.6MPa.

    · The external dimension of the sensor isΦ12×120,225or other size.

    · The outer tube material:glass.

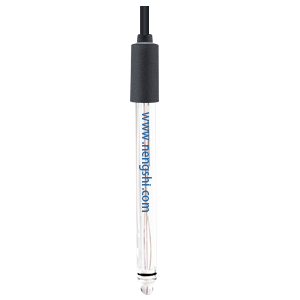

  • Model: ASP2201 combination sensor

    · Direct use with various pH meters as a complete set.

    · The sensor has the fixed cable and the length of the cable can be adjusted

      according to the requirements of the users.

    · pH range:0-14.

    · Temperature rang: 0-110℃.

    · pressure range0.6MPa.

    · zero point: E0=7pH.

    · The external dimension of the sensor isΦ12×120,225or other size.

    · The outer tube material:glass.

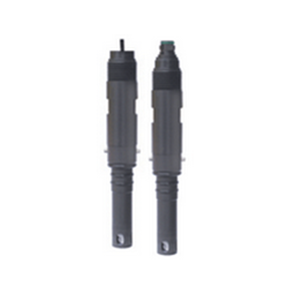

  • Shown as the figure:
    · Direct use with various pH meters as a complete set.
    · The combination sensor with temperature compensation.
    · Please note the value of temperature compensation resistance in order.
    · Adoption of very convenient spin locking mode and simple installation.

    · pH range:0-14;  zero point: E0=7pH; Temperature rang: 0-110℃.

    · Pressure range0.6MPa.

    · The external dimension of the sensor isΦ25×160.

    · The outer tube material : plastic.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

     Selection of model:
    · ASPS1111  fixed cable combination sensor with thermistor
                        (please note the value of the thermistor when order)
    · ASPS1151  plug-in connection combination sensor with thermistor
                        (please note the value of the thermistor when order)

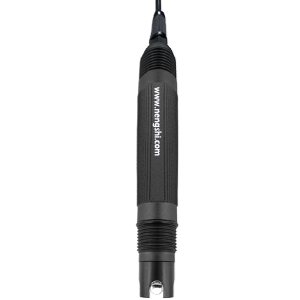

  • Shown as the figure:
    · Direct use with various pH meters as a complete set.
    · Installation with 3/4NPT pipe thread, convenient to installation.

    · The sensor has the fixed cable and the length of the cable can be adjusted according to the requirements of the users.

    · pH range:0-14; zero point: E0=7pH; Temperature rang: 0-110℃.

    · Pressure range0.6MPa.

    · The external dimension of the sensor isΦ26×165.

    · The outer tube material: PPS plastic.
    · The thermistor is Pt100Pt10002.252K10K22K etc.
    Selection of model:
    · PC2221 combination sensor

    · ASPS2221 combination sensor with thermiste

                        (please note the value of the thermistor when order)

  • Shown as the figure:
    · Direct use with various pH meters as a  complete set.
    · The  combination sensor with temperature compensation.
    · Please note the value of temperature compensation resistance when order.
    · It can be installed together with the thread PG13.5.

    · pH range:0-14;zero point: E0=7pH; Temperature rang: 0-110℃.

    · pressure range0.6MPa.

    · The external dimension of the sensor isΦ12×120,225 or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    Selection of model:
    · ASP3211  Fixed cable combination sensor with thermistor
                        (please note the value of thermistor when order)
    · ASP3251  Plug-in connection combination sensor with thermistor
                        (please note the value of thermistor when order)
  • Shown as the figure:

    · Directly used with various pH meters as a complete set.

    · When the conductivity of water sample<1 μs/cm, please select the sensor.

    · 3 ceramic diaphragm for flow direction independent signals.

    · Plug-in connection,convenient to installation and replacement .

    · pH range:0-14.

    · Temperature rang: 0-110℃.

    · pressure range0.6MPa.

    · zero point: E0=7pH.

    · The external dimension of the sensor isΦ12×120,225 or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    Selection of model:

    · ASP2285 combination sensor

    · ASP3285 combination sensor with thermistor

                      (please note the value of the thermistor when order)

  • Shown as the figure:
    · Directly used with various pH meters as a complete set.
    · When the conductivity of water sample<1 μs/cm, please select the sensor.
    · 3 ceramic diaphragm for flow direction independent signals.

    · The sensor has the fixed cable and the length of the cable can be adjusted

       according to the requirements of the users.

    · pH range:0-14 zero point: E0=7pH; Temperature rang: 0-110℃.

    · pressure range0.6MPa.

    · The external dimension of the sensor isΦ12×120,225 or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100Pt10002.252K10K22K etc.

    Selection of model:
    · ASP2205  combination sensor

    · ASP3205  combination sensor with thermistor

                       (please note the value of the thermistor when order )

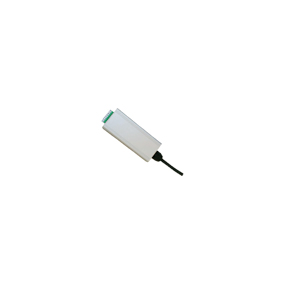

  • PT3000 pH digital module

    · It can directly connect with analog pH sensor .

    · It can convert analog signals to digital signals.



     Selcction of model:

     PT3000 pH digital module with RS485 output

Technical parameters
