pH sensor for pure water pH sensor for waste water pH sensor for common process pharmacy and fermentation industry Digital pH sensor
Process Sensor
pharmacy and fermentation industry

Technical feature:

·

The measurement range：0～14 pH , zero point E0=7pH and the pressure resistance：0.6MPa.

·

The temperature range：0~130℃,suitable for steam sterilizable.

·

Good stability and small drift of sensor.

·

Quick response of sensor.

·

The sensor is in accordance with the requirements on sanitation of foods.

·

The dimension of the sensor is φ 12x120, 150 and 225mm or other dimensions.

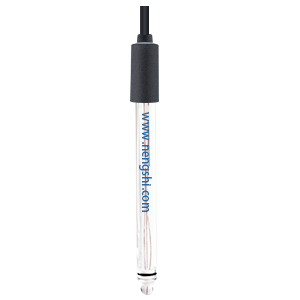

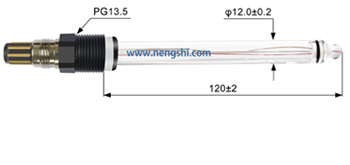

  • Shown as the figure:
    · Direct use with various pH meters as a complete set.
    · Plug-in connection; convenient installation and replacement.
    · It can be installed with the theread PG13.5.
    · Gel sensor. it is unnecessary to fill electrolyte, convenient to use.

    · pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-130℃.

    · Pressure range：0.6MPa.

    ·The external dimension of the sensor isΦ12×120,225 or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

    Selection of model:
    · ASP2321 combination sensor

    · ASP3351 combination sensor with thermistor

                      (Please note the value of the thermistor when order)

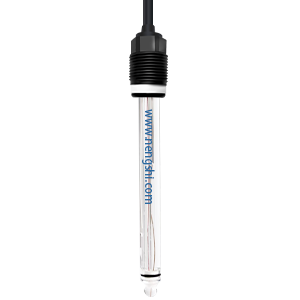

  • Shown as the figure:
    · Direct use with various pH meters as a complete set.

    · The electrode has the fixed cable and the length of the cable can be adjusted according

       to the requirements of the users.

    · It can be installed with the thread PG13.5 .

    · pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-130℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor isΦ12×120,225mmor other size.

    · The wetted parts : glass.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.

    Selection of model:
    · ASP2311 combination sensor

    · ASP3311 combination sensor with thermistor

                      (Please note the value of the thermistor when order)

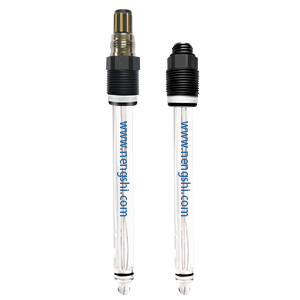

  • Shown as the figure:
    · Direct use with various pH meters as a complete set.

    · The sensor has the fixed cable and the length of the cable can be adjusted according

       to the requirements of the users.

    · pH range:0-14; Zero point: E0=7pH; Temperature rang: 0-130℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor is Φ12×120,225mm or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
    Selection of model:
    · ASP2301 combination sensor

    · ASP3301 combination sensor with thermistor

                      (Please note the value of the thermistor when order)

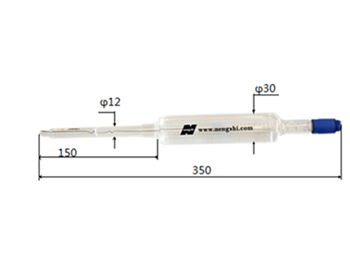

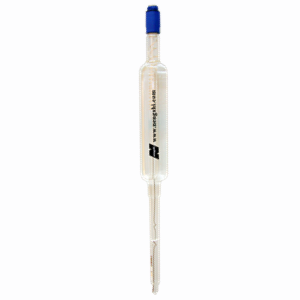

  • Shown as the figure:
    · Direct use with various pH meters as a complete set.

    · The sensor  has the fixed cable and the length of the cable can be adjusted according to

       the requirements of the users.

    · The sensor can not be interferenced by silver ions.

    · pH range:0-14; zero point: E0=7pH; Temperature range: 0-130℃.

    · Pressure range：0.6MPa.

    · The external dimension of the sensor isΦ12×120,150mm or other size.

    · The outer tube material : glass.

    · The thermistor is Pt100、Pt1000、2.252K、10K、22K etc.
    Selection of model:
    · ASP2385C combination sensor

    · ASP3385C combination sensor with thermistor

                        (Please note the value of the thermistor when order)

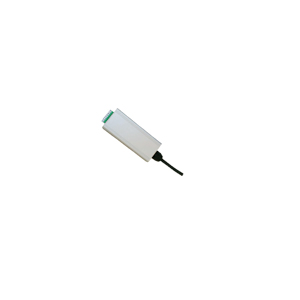

  • PT3000 pH digital module

    · It can directly connect with analog pH sensor .

    · It can convert analog signals to digital signals.



    Selcction of model:

    · PT3000 pH digital module with RS485 output

Technical parameters
