Process Sensor
Digital pH sensor

Technical feature:

·

The measurement range014 pH , zero point Eo=7pH and the pressure resistance0.6MPa.

·

The temperature range0~130,suitable for steam sterilizable.

·

Good stability and small drift of sensor.

·

Quick response of sensor.

·

The sensor is in accordance with the requirements on sanitation of foods.

·

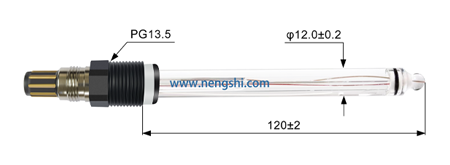

The dimension of the sensor is φ 12x120, 150 and 225 or other dimensions.

  • Digital pH sensor

    · It can convert analog signals to digital signals ,and it is a predictive digital pH sensor.

    · Data stored in the sensor interface,such as zero point,slope etc.

    · the date can close transmission but also long distance transmission .

    · The measured value is stable and reliable.

    · Don't accept the influence of the surrounding environment ,such as temperature, electromagnetic field etc.

    · pH range:0-14; zero point: E0=7pH; Temperature rang: 0-110℃.

    · pressure range0.6MPa.

    · The external dimension of the sensor isΦ12×120,225 or other size.

    Selection of model:

    · ASP3151D digital pH sensor with plug-in connection, glass body

    · ASP31111D digital pH sensor with fixed cable, glass body

    · ASPS2151D digital pH sensor with plug-in connection, plastic body

    · ASPS2121D  digital pH sensor with fixed cable , plastic body

    · ASPRT2121D pH,ORP, temperature 3 in 1 digital sensor with fixed cable ,plastic body

    · ASPRT2151D pH,ORP, temperature 3 in 1 digital sensor with plug-in connection,

       plastic body

    · ASPRCT2121D pH,ORP,conductivity ,temperature 4 in 1 digital sensor with fixed cable,

       plastic body

    · ASPRCT2151D pH,ORP,conductivity ,temperature 4 in 1 digital sensor with plug-in

       connection, plastic body

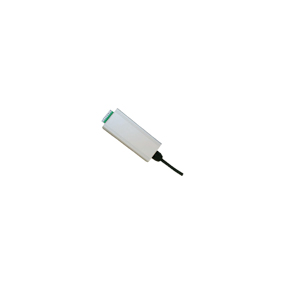

  • PT3000 pH digital module

    · It can directly connect with analog pH sensor .

    · It can convert analog signals to digital signals.



     Selcction of model:

     PT3000 pH digital module with RS485 output

Technical parameters
